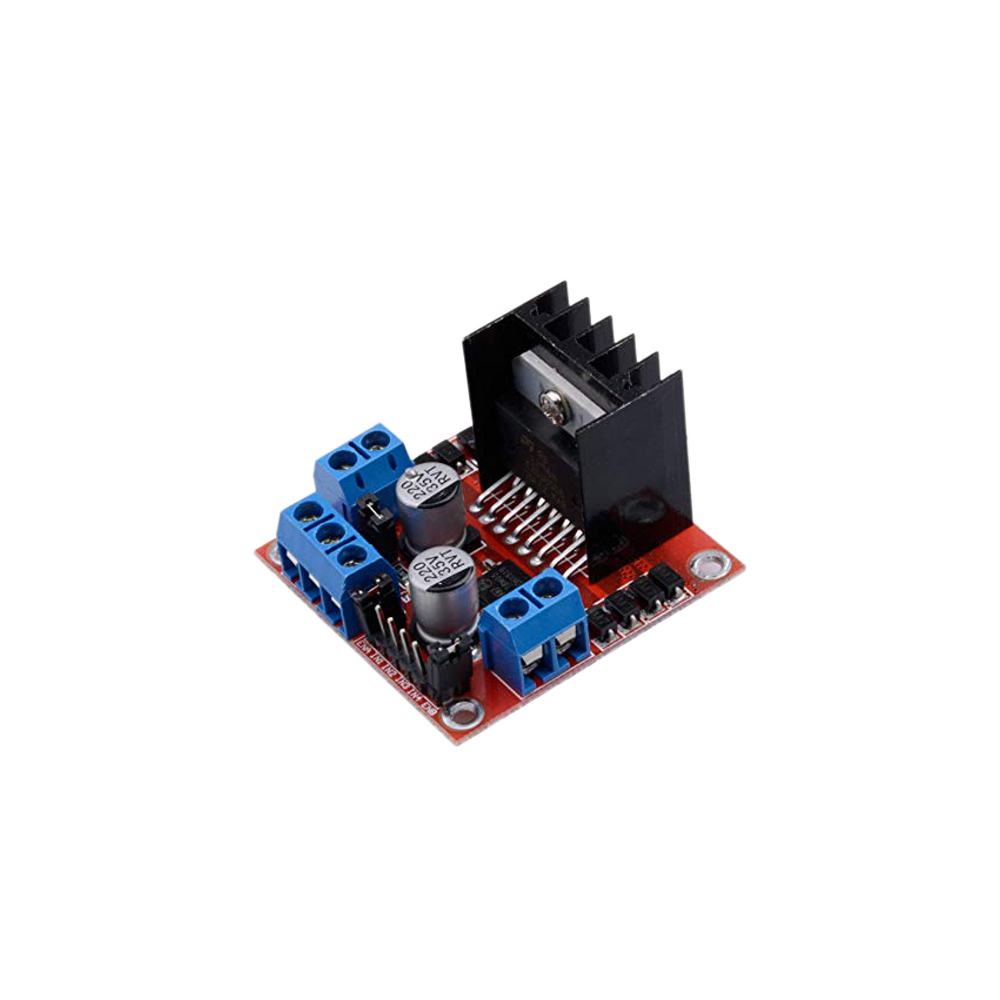

L298N Motor Driver Board Red


L298N Motor Driver Board Red

L298N Motor Driver Board (Red) features an L298N dual H-bridge, supports motor supply Vs 7–35V (on-board 5V option), logic Vss 5–7V, peak output current 2A, enable/control inputs, up to 20W dissipation at 75°C, compact and reliable for DC motor and stepper control.

Hurry! only 100 items left in stock.
₹169.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

The L298N Motor Driver Board uses the L298N dual H-bridge IC to drive two DC motors or a bipolar stepper. It accepts a motor supply (Vs) typically 7–35V (board-configurable 5–35V) and a logic supply (Vss) of 5–7V. Peak channel current is 2A, with maximum power dissipation around 20W at 75°C. Control and enable inputs follow defined TTL thresholds; observe correct wiring, proper supply selection, and adequate heat sinking for safe, reliable operation. Storage range: -25°C to +130°C.
