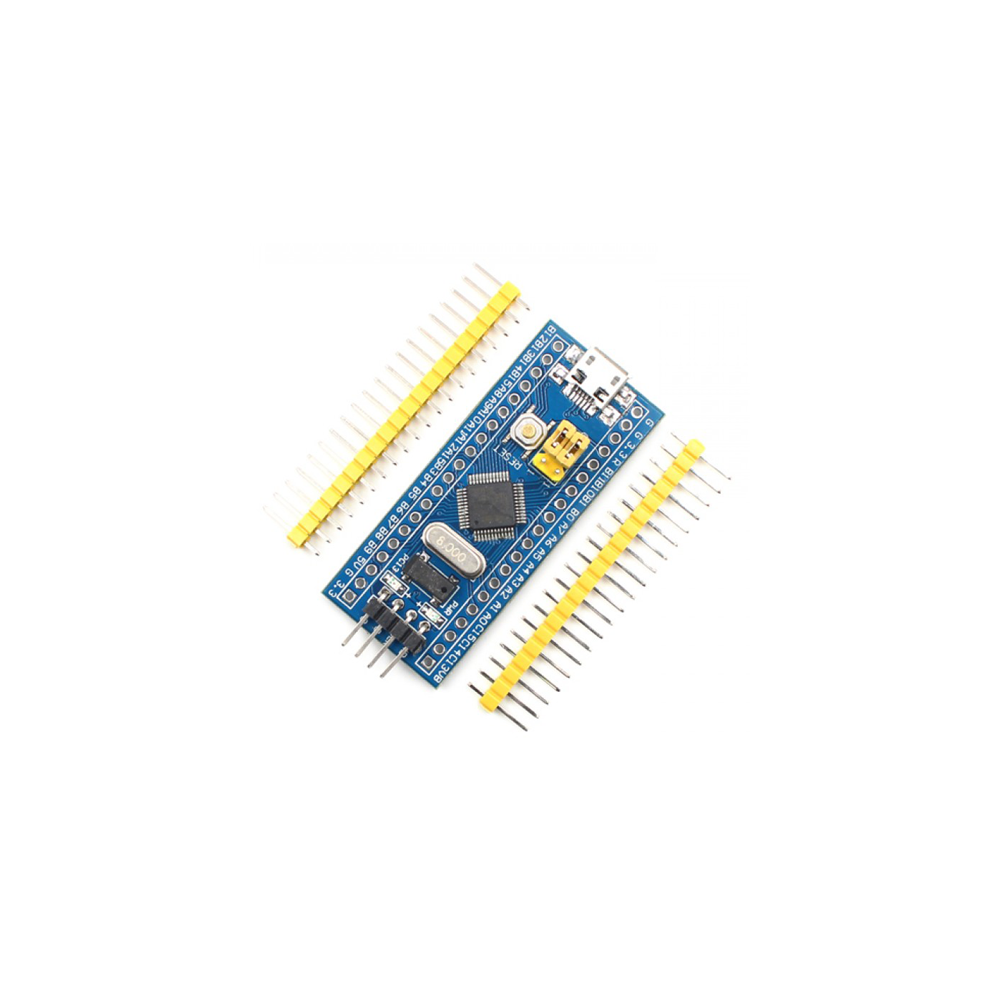

Minimum System Board Microcomputer ARM Core


Minimum System Board Microcomputer ARM Core

STM32F103C6T6 Development Board – ARM Cortex-M3 microcontroller with 64KB Flash, 20KB SRAM, 72MHz clock, multiple interfaces (SPI, USART, I2C, CAN), and SWD/JTAG debug support.

Hurry! only 100 items left in stock.
₹449.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

The STM32F103C6T6 Minimum System Development Board is a compact and high-performance microcontroller platform based on the ARM Cortex-M3 core. Operating at 72MHz, it offers 64KB Flash memory, 20KB SRAM, and integrates a wide range of interfaces including 2x SPI, 3x USART, 2x I2C, 1x CAN, and 37 GPIO ports. It also features 2x 12-bit ADCs with up to 16 channels, 3 general-purpose timers, and 1 advanced timer for versatile control applications. With a working voltage of 2.0–3.6V and an onboard RT9193 3.3V regulator (300mA max output), it ensures stable operation. Debugging and programming are supported via JTAG/SWD and IAP interfaces, making it ideal for IoT, robotics, automation, and embedded system projects.

: 100 Items
Hurry! only 100 items left in stock.
