16BIT Analog Digital Converter ADC Module


16BIT Analog Digital Converter ADC Module

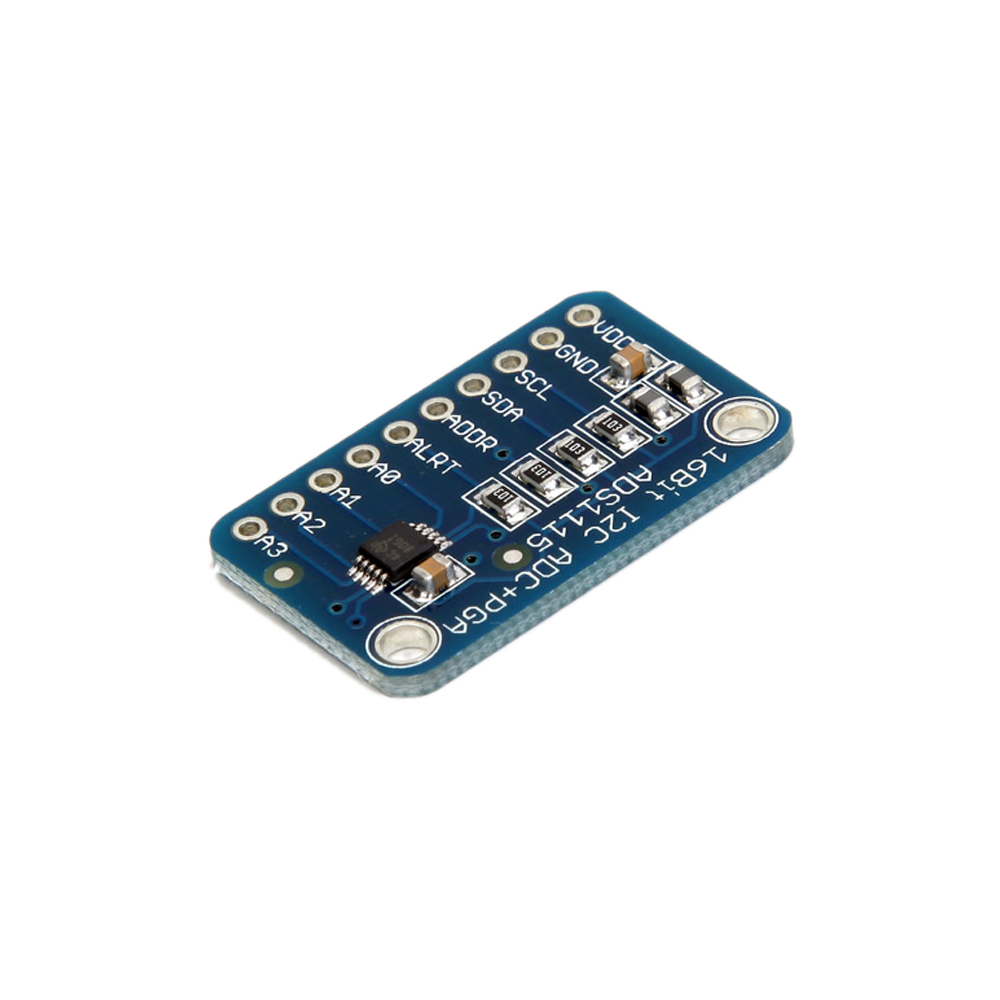

This high‑precision ADS1115 ADC module delivers 16‑bit resolution and up to 860 samples per second via I²C. It features four single‑ended or two differential inputs, a programmable gain amplifier (up to ×16), and broad compatibility with 2–5.5 V logic systems.

Hurry! only 100 items left in stock.
₹129.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

The ADS1115 ADC module provides accurate analog-to-digital conversion using a delta‑sigma core, communicating via I²C at programmable data rates (8–860 SPS). It supports four single‑ended or two differential channels and includes an onboard PGA to amplify small signals up to 16×. Operating from 2 to 5.5 V, it ensures seamless interfacing with 3.3 V or 5 V microcontrollers. Its compact, low-power design makes it an ideal choice for precision sensing in embedded systems.

: 100 Items
Hurry! only 100 items left in stock.
