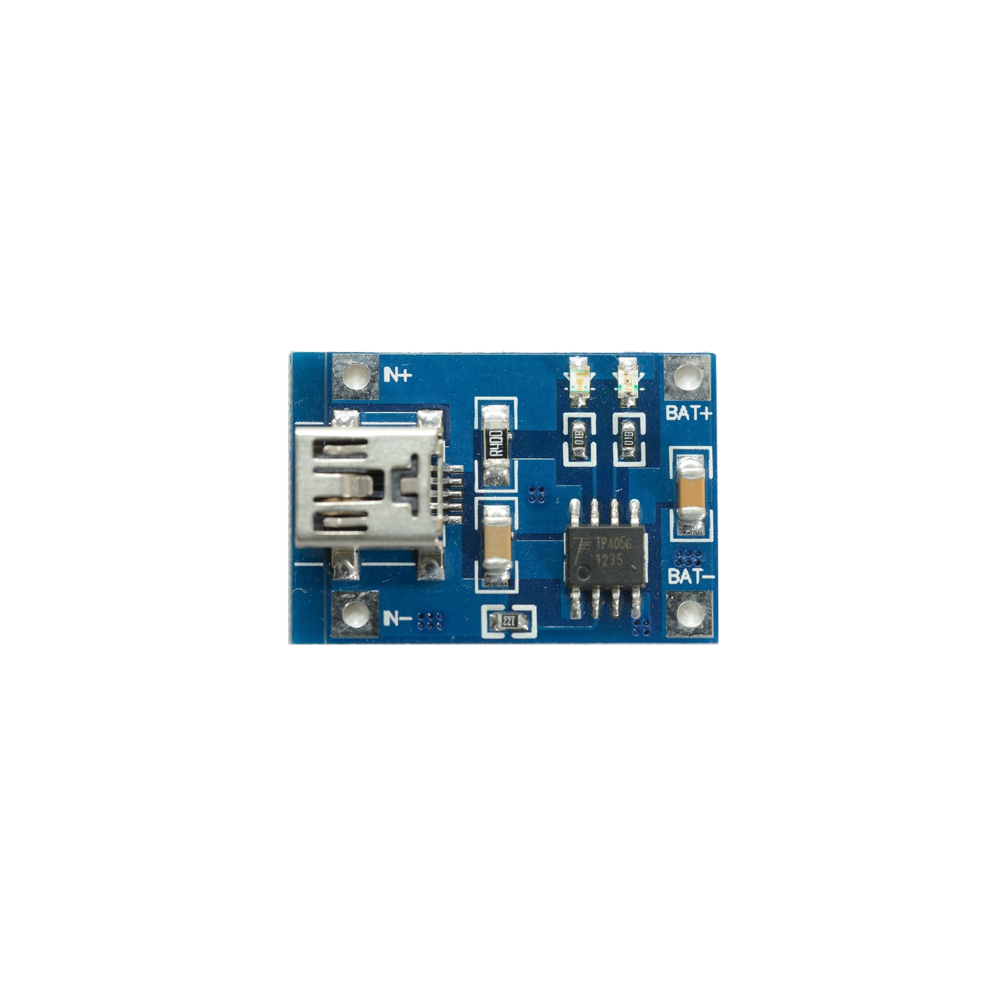

TP4056 1A Lipo Battery Charging Board Micro USB


TP4056 1A Lipo Battery Charging Board Micro USB

A compact micro‑USB Li‑ion battery charger module using the TP4056 chip. Operates from 4.5–5.5 V, delivers 1 A charge (adjustable via R‑prog resistor), and charges an 18650 cell to 4.2 V with ±1.5% accuracy. Red LED indicates charging; blue LED signals full charge.

Hurry! only 100 items left in stock.
₹129.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

This TP4056-based charging board offers efficient CC/CV charging for single-cell Li-ion batteries via a convenient micro-USB interface. It supports adjustable charge current up to 1 A by replacing the onboard resistor (R‑prog), achieves full-charge voltage of 4.2 V with ±1.5% accuracy, and operates between 4.5–5.5 V. LED indicators clearly display red during charging and blue when complete. Ideal for portable, single-cell projects with simple, reliable performance.
