WEIGHING LOAD CELL SENSOR 1KG YZC-131


WEIGHING LOAD CELL SENSOR 1KG YZC-131

LOADS1 Weighing Load Cell Sensor 1KG YZC-131 – High-precision aluminum load sensor with 1kg capacity, ideal for DIY scales and weight measurement systems.

Hurry! only 100 items left in stock.
₹260.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

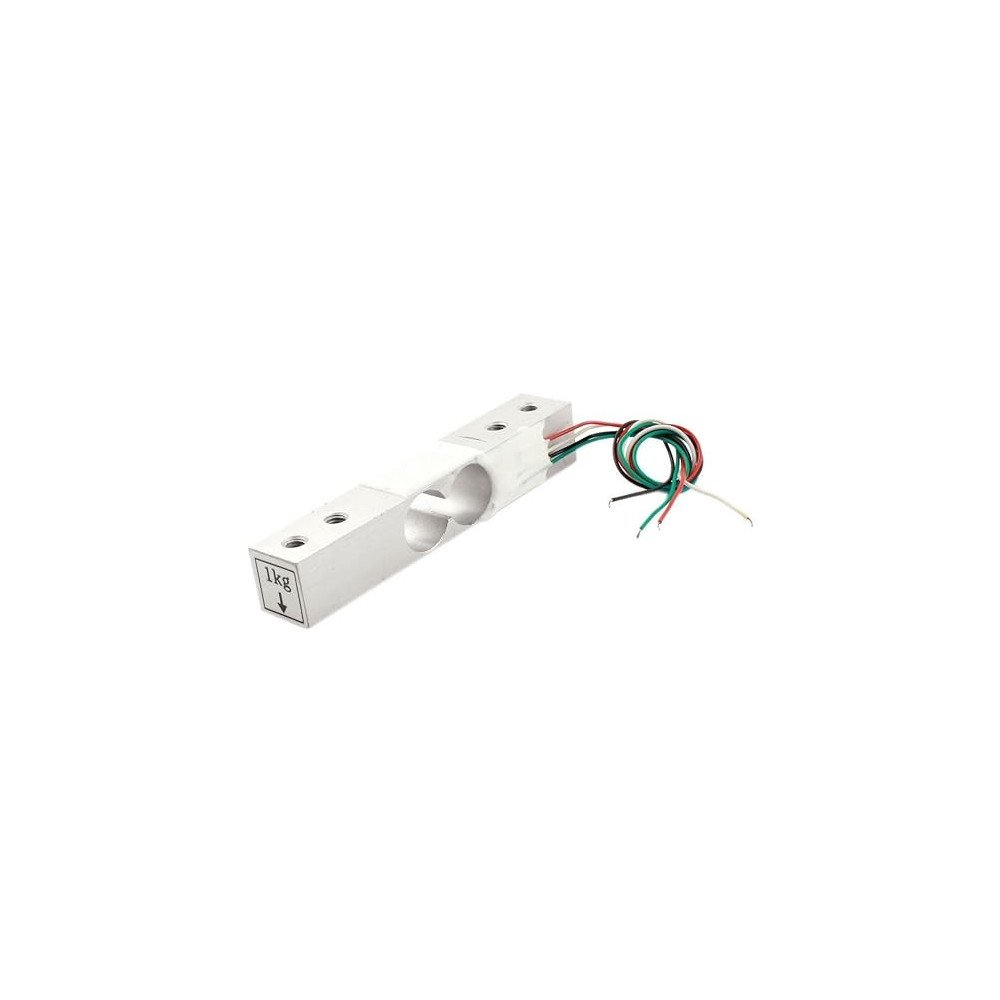

The LOADS1 YZC-131 Weighing Load Cell Sensor is a reliable and accurate sensor designed for precise weight measurement applications up to 1kg. Built with durable aluminum, it provides a rated output of 2.0±0.15mV/V with C2 accuracy class. It ensures stability with minimal creep (0.03%RO/30min) and excellent temperature compensation for consistent performance in varying conditions. With input resistance of 402Ω and output resistance of 350Ω, it delivers high signal integrity. Operating within a wide temperature range (-35°C to +80°C), this load cell is suitable for digital scales, electronic balance systems, and embedded measurement projects. Its compact size, safe overload capacity of 150%, and ultimate overload tolerance of 200% make it highly reliable for long-term use.

: 100 Items
Hurry! only 100 items left in stock.
