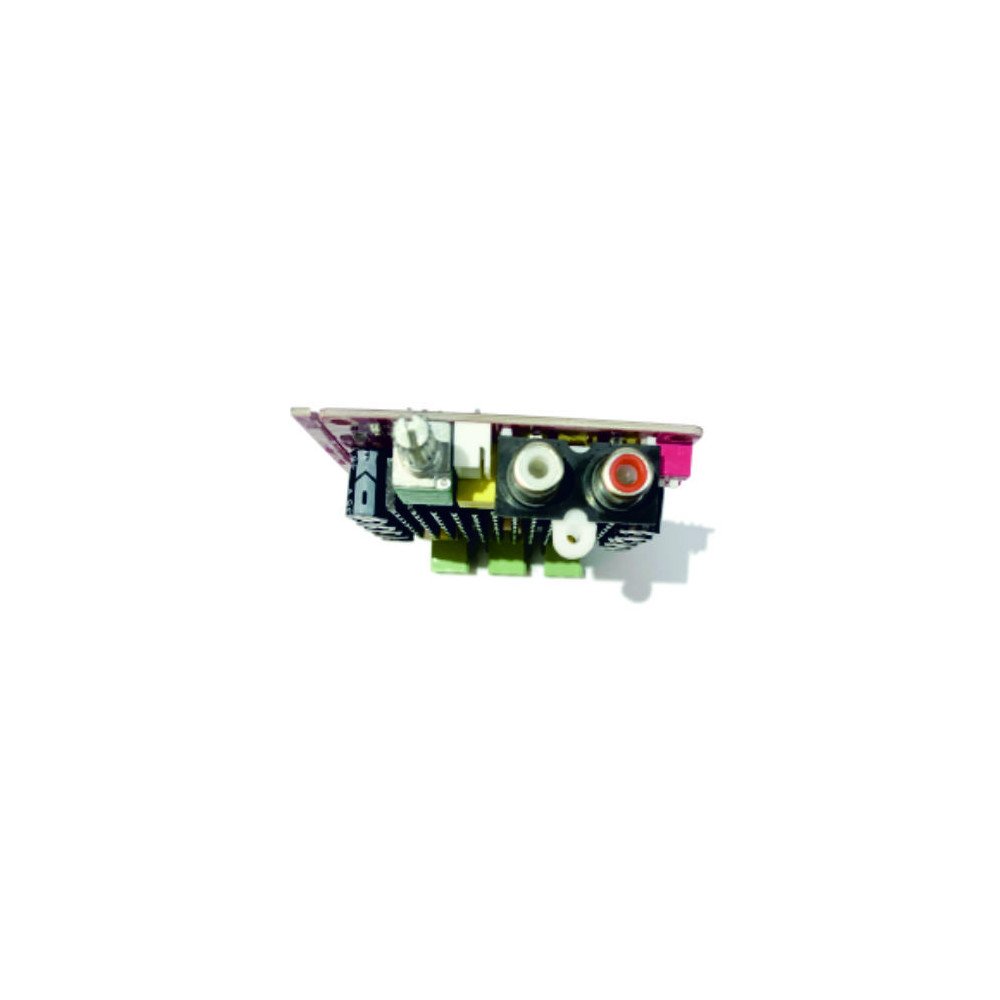

XM-M510 DC 14-32V HIGH POWER DIG POWER AMP BOARD


XM-M510 DC 14-32V HIGH POWER DIG POWER AMP BOARD

T7498 – XM-M510 High Power Digital Amplifier Board with TDA7498 chip, delivering 2x100W output at 14–32V DC, featuring noise reduction, intelligent protection, and adjustable gain.

Hurry! only 100 items left in stock.
₹1,050.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

The T7498 XM-M510 is a high-performance Class D digital power amplifier board built around the TDA7498 chip. It delivers dual-channel output of 100W + 100W (at 32V, 4Ω load, THD 10%) with wide input voltage support from 14–32V DC. Designed with differential input, it significantly reduces common-mode noise and provides four selectable gain levels (21.6dB, 27.6dB, 31.1dB, 33.1dB). The board features intelligent protection functions including overheating and fault protection, as well as silent mode operation. With a frequency response of 18Hz–100kHz, 110dB SNR, and low harmonic distortion (0.05% at 1W), it ensures clean and powerful audio. Compact in size (9.4 x 6.2 cm), this amplifier is ideal for DIY audio, home stereo systems, and high-power speaker projects.
