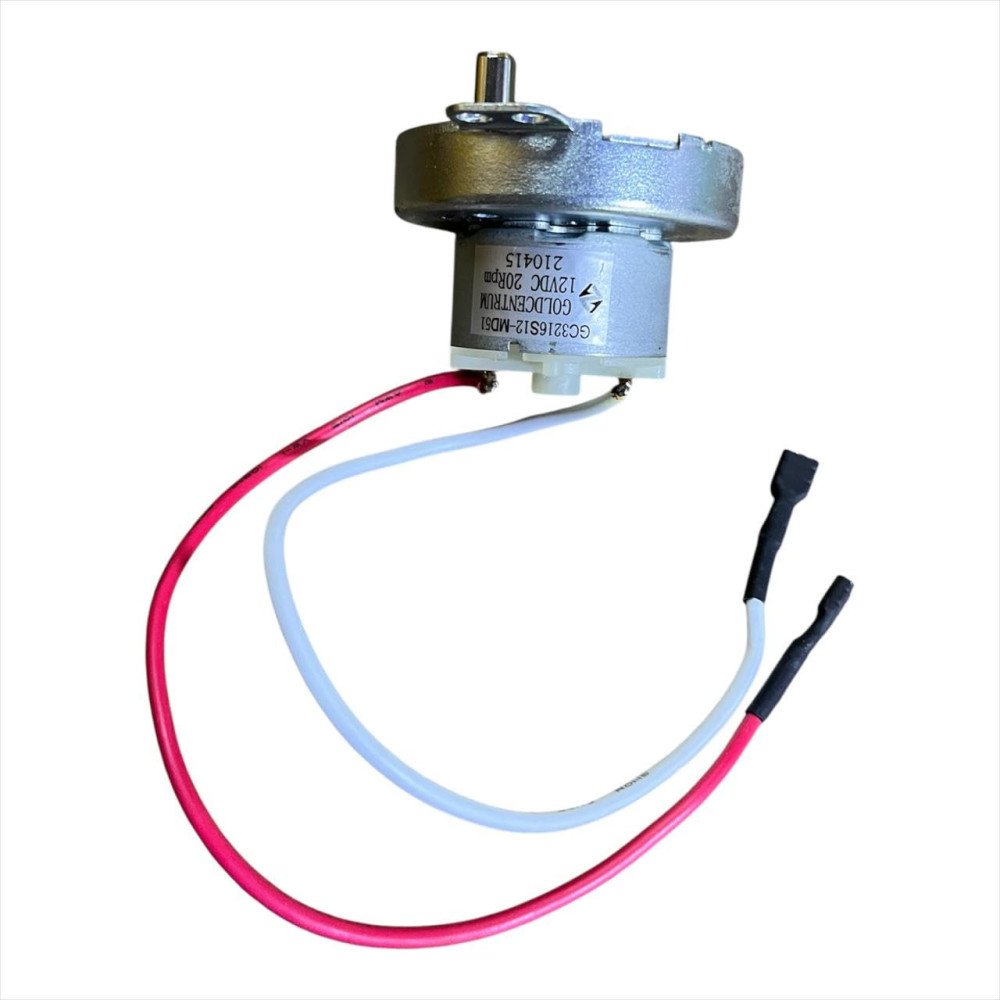

(20RPM) D-Shaft Gear Electric Motor


(20RPM) D-Shaft Gear Electric Motor

About this item

  • Shaft Diameter: 6mm；
  • Shaft Length: 15mm；.
  • Size: 50*50*34mm (1.97"*1.97"*1.34")
  • No-Load Current: 20mA
  • Power: 2W
  • Rotation: CW/CCW
  • 12V
  • Model Name Micro Gear Motor
    Speed 20 RPM
    Voltage 12 Volts
    Horsepower 2 Nanowatts
Hurry! only 100 items left in stock.
₹110.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

Description: JS-50 DC geared motor has an iron shell on the outside and plastic gears on the inside. The plastic gears are injection molded from high quality POM material, which is wear-resistant, low noise and not easy to deform. Specification: Shaft: D-shaft; Shaft Diameter: 7mm (0.28"); Shaft Length: 15.5mm(0.61")/15mm (0.59"); Size: 50*50*34mm (1.97"*1.97"*1.34"); Working Voltage: DC 12V; Speed: 20r/min;No-Load Current:45mA;Locked-rotor current:320mA;Torque:≤9kg.cm; Power: 2W; Torque:≤ 10kg.cm;Rotation: CW/CCW There is a slight discrepancy in measurements, please check before ordering!! Application:Mainly used for direct current electric fan wind guide mechanism, swing head mechanism, heater, heater, all kinds of display stands, arts and crafts, and so on. Lighting fixtures, toys and other utensils, automatic doors and windows, vending machines, automatic barbecue grills, medical equipment, and air conditioning fan guide motors for all types of air conditioners. and microwave oven turntable motors, etc. Attention: 1.The applicable voltage of this motor is DC 12V, using AC power supply, the motor does not work; too high voltage will burn the motor.If you can't judge whether your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service before buying the motor. 2.The faster the speed, the quieter the relative noise will be. And, the higher the speed, the lower the torque. About custom:Motor shaft, line length, speed, voltage can be designed according to customer requirements. If you need other models of motor, you can contact us by email. Welcome to bulk
