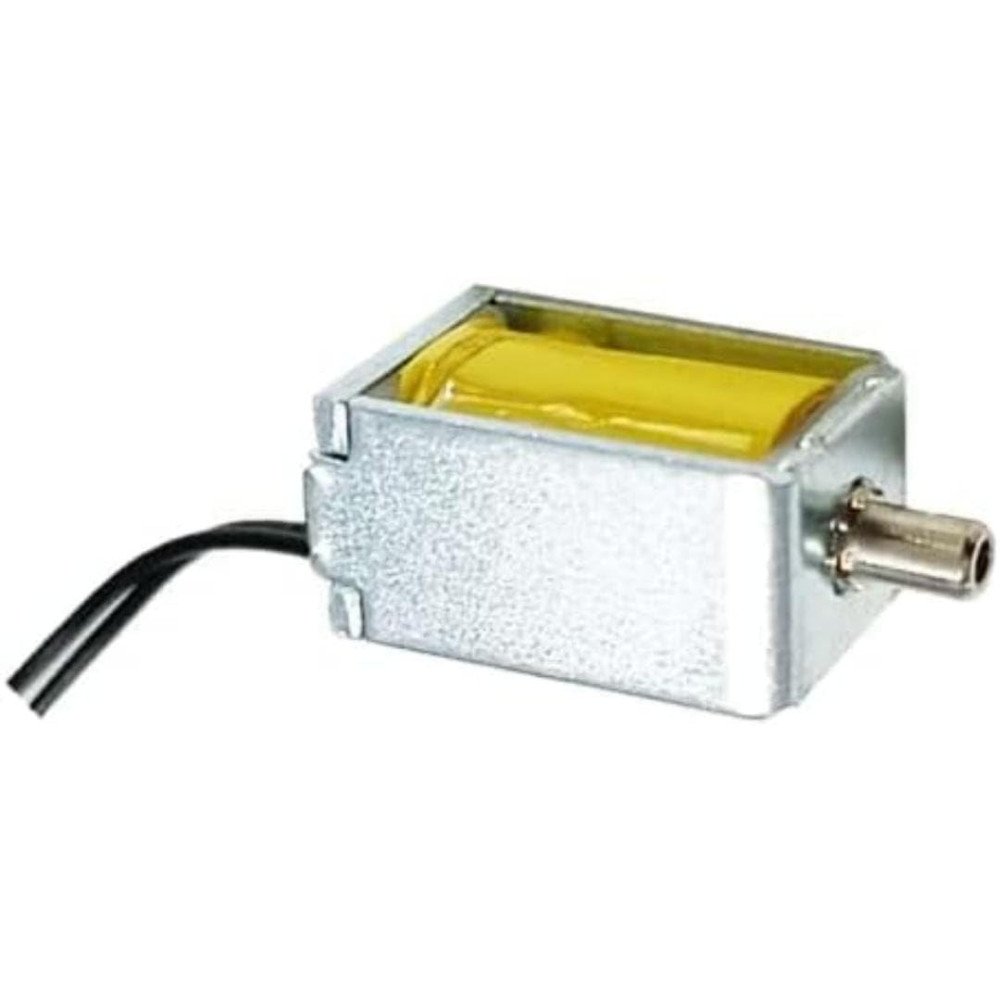

DC 3V To 6V Mini Electromagnetic Solenoid Valves Normally Opens for Electric Air Valves


DC 3V To 6V Mini Electromagnetic Solenoid Valves Normally Opens for Electric Air Valves

Item dimensions L x W x H 30 x 20 x 30 Millimeters
Exterior Finish Silver-Plated/Chrome-Plated Metal
Inlet Connection Type Compression

About this item

  • Rated Voltage DC 3V DC 4.5V DC 6V DC 9V DC 12V
  • Rated Current 375±10% mA 375±10% mA 350±10% mA 230±10% mA 170±10% mA DC Resistance 8±10% Ω 12±10% Ω 17±10% Ω 40±10% Ω 70±10% Ω Air Tap O.D. Φ4.5mm
  • Common Pressure -50KPa Medium Air
  • Leakage ≤1mmHg/min (From -100mmHg in a 100cc tank) Exhaust Speed ≤1sec(From -300 to -15mmHg in a 100cc tank)) Insulation Level A
  • Type Normally Opens Rated Life ≥200000 cycles(ON 1S, OFF 2S )
Hurry! only 100 items left in stock.
₹50.00
Tax excluded
Quantity

Add to Wishlist
  Security policy

Secure payments through trusted payment partners. Your information is protected with industry-stand

  Delivery policy

Orders are shipped within 24–48 hours. Delivery timelines depend on your location and courier avail

  Return policy

Easy returns for damaged or incorrect items. Please contact us within 48 hours of delivery for assi

It has low vibration and low power consumption.Reliable, compact, and simple to install. Can be used for gas valve and pump.Widely used in automatic control equipment. It will become hot when it works because there are so many coils inside. It’s normal phenomenon. Features： Rated voltage: DC 6V

Key Technical Specifications
  • Operating Voltage: DC 3V, 4.5V, and 6V.
  • Current Consumption: Ranges from approximately 350mA to 375mA depending on the applied voltage.
  • Pressure Range: Typically rated for 0–350 mmHg (approx. 0–46 kPa).
  • Response Speed: Very fast, often deflating a standard 500cc vessel in less than 3 seconds.
  • Life Expectancy: High-quality models are rated for over 200,000 cycles.
  • Port Size: Standard outer diameter is usually 3mm to 4.5mm, fitting small silicone or PVC tubing
  • Functional Description
    • Default State (Power OFF): The internal plunger is held in a position that keeps the air passage open. This is energy-efficient for systems that require constant airflow or venting as their primary state.
    • Active State (Power ON): The electromagnetic coil generates a magnetic field that pulls the plunger against a spring, sealing the orifice and stopping airflow.
    • Heat Generation: It is normal for these valves to become hot during operation because of the dense copper coils inside; they are often intended for intermittent use (e.g., 1 second on, 2 seconds off) rather than continuous power.
